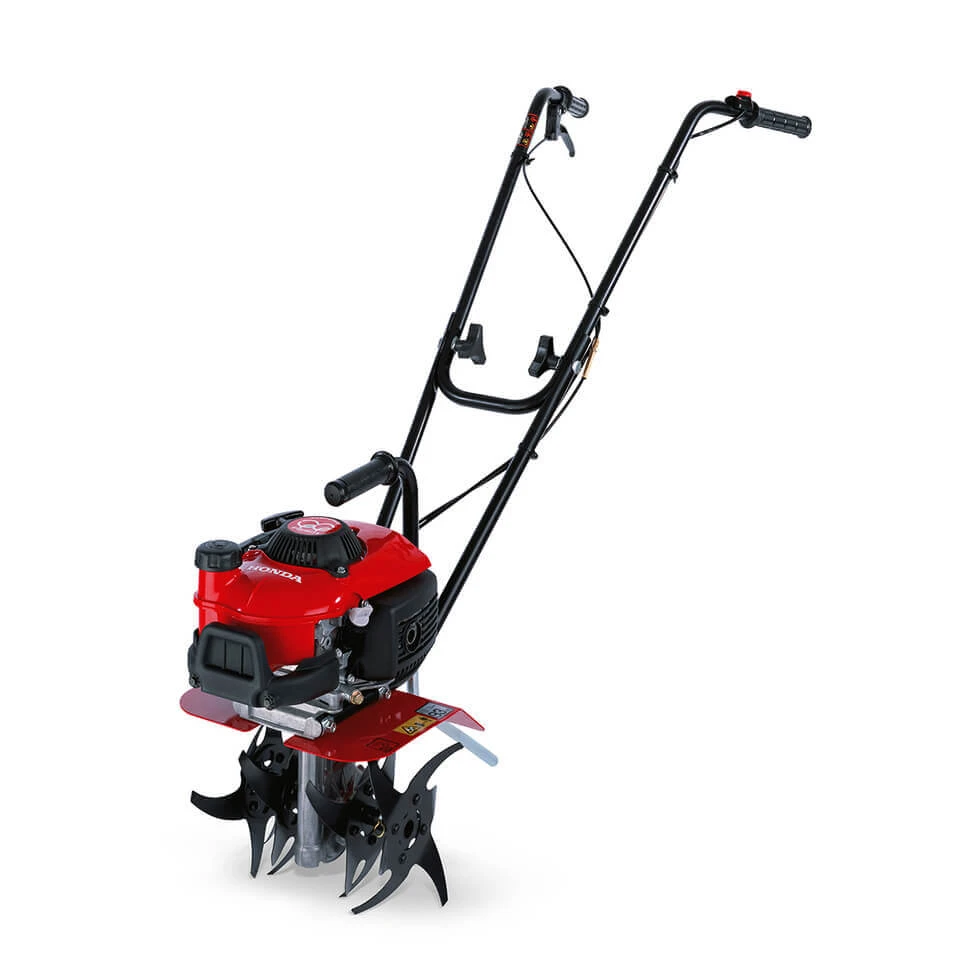

Honda FG201 49cc Mini Tiller

Features:

• Max tilling width (mm): 300
• Max tilling depth (mm): 230
• Wheels: Rear transport
• Side Discs: Not available
• Foldable Handle: Yes
• Height Adjustment Handle: Not available
• Swing Handle: Not available
• Counter-rotating tines: Not available

Technical Specification:

• Max tilling width (mm) – 300
• Max tilling depth (mm) – 230
• Forward speeds – 1
• Forward tool rotation speed (rpm) – 197 rpm
• Dimension (L x W x H) (mm) – 1,185 x 455 x 980
• Dry weight (kg) – 17
• Rotors/tines supplied – 4 x 4 tooth shredder tines
• Wheels – Optional Rear Transport
• Border edger – Optional
• De-thatcher / scarifier – Optional
• Aerator – Optional
• Engine – 4-stroke OHC
• Engine model – GXV50
• Engine displacement (cc) – 49
• Engine net power (kW/rpm) – 1.3/4,800
• Fuel tank capacity (Litres) – 0.35
• Engine oil capacity (Litres) – 0.3
• Starter – Recoil
• Drive clutch – Automatic – centrifugal
• Transmission – Worm gear
• Sound pressure at operators ears (dB(A)) – 79
• Guaranteed sound power level (dB(A)) – 93
• Vibration (m/sec²) – 5
• Foldable handle – Yes
